Description
doepfer pedal DoepferFP5 foot controller about 1m cable length Stereo jack plug 1 4" potentiometer 10k linear (suitable e. g. for LMK4+ 2+ or A 177) dimensions: overall: 25 x 12 x 11 cm (down position) resp. 25 x 12 x 15 cm (up position) angle of rotation: 20 degrees Pin out of the stereo jack plug: left (ccw) terminal of the potentiometer = GND terminal of the jack plug middle terminal (wiper) of the potentiometers = ring of the jack plug right (cw) terminal of the

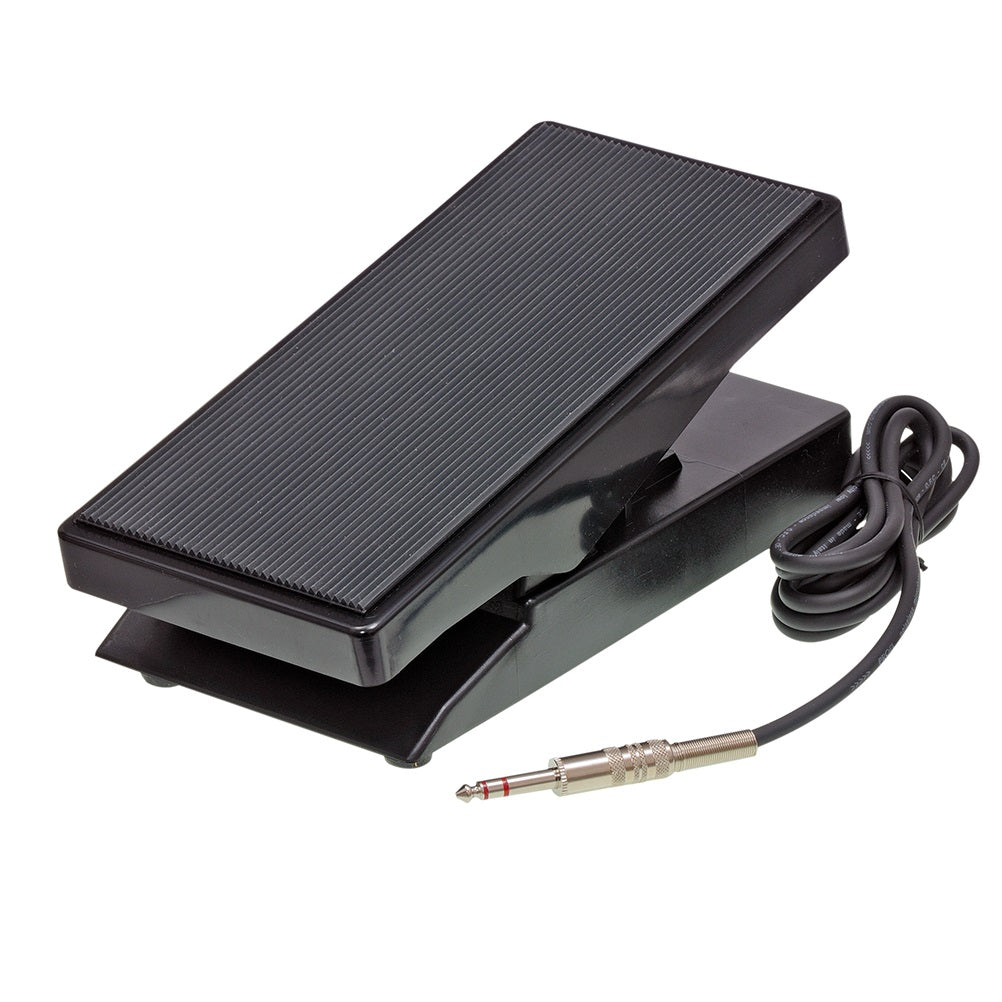

FP5 foot controller
- about 1m cable length
- Stereo jack plug 1/4"
- potentiometer 10k linear (suitable e.g. for LMK4+/2+ or A-177)
- dimensions: overall: 25 x 12 x 11 cm (down position) resp. 25 x 12 x 15 cm (up position)
- angle of rotation: 20 degrees
Pin out of the stereo jack plug: left (ccw) terminal of the potentiometer = GND terminal of the jack plug middle terminal (wiper) of the potentiometers = ring of the jack plug right (cw) terminal of the potentiometer = tip of the jack plug
Pay attention that not the full rotating angle of the potentiometer is covered but only about 50%. If the end terminals of the potentiometer are e.g. connected to GND and +5V only a voltage range 0...+2.5V is covered ! Of course the foot control inputs of our keyboards take this special behaviour into consideration but e.g. for DIY/OEM applications one has to pay attention to the limited rotating angle.
